TR250, TR6 & GT6 Fan Eliminator Kit - Installation

The installation is very easy to do with the radiator removed but I’m told it can be done with the radiator still in place. Having the radiator removed will also make installation of the electric fan a lot easier.

All of this gets to be removed.

First remove the outer 4 bolts & jiggle the fan off.

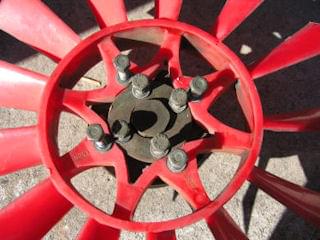

Fan Outer Ring

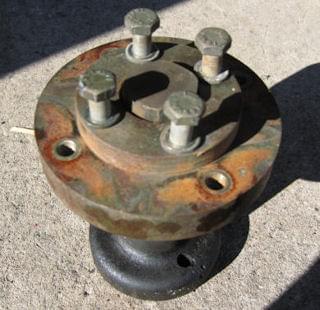

Shaft Bolts

Next you remove the 4 inner bolts which lets you remove that inner disk exposing the main bolt.

You need a 1-1/8″ 6 point socket to get that bolt off.

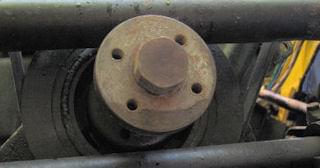

Shaft Ctr Bolt

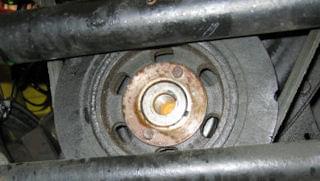

Shaft Off

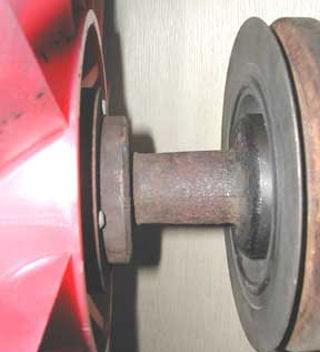

Fan extension removed & ready for kit. Note the two (2) “dowels” that the retainer will fit over.

After removing the Triumph fan spacer and prior to installing the Eliminator, try rocking the balancer to see if the key or keyway is worn. If the fit is NOT a nice tight sliding fit, corrective action is required before proceeding with the installation.

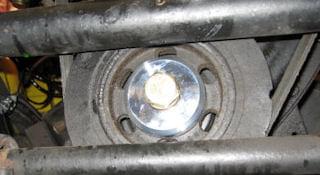

All mounted and ready for the new bolt. Now just add the flat and split washers and hand tighten the bolt.

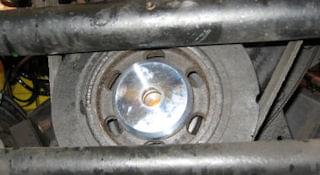

Retainer

Torque the bolt to 70 lbs and it’s all done! You will need someone stepping real hard on the brake pedal to keep the car from moving.

Installation:

Remove the plastic fan from the cast fan extension. There are two rings of bolts at the face of the fan. The outer four bolts hold the plastic fan to the steel ring while the inner circle of four hold the ring to the fan extension. These bolts have a 1/2″ heads. The steel ring must be removed to access the center bolt. The factory center bolt has a head size of 1 1/8″. A six point socket is best as the original bolt head has rounded corners but in most cases a twelve point socket will work. Once the bolt is removed the cast fan extension should lift off the two dowel pins of the harmonic balancer.

After removing the original fan extension and prior to installing the Eliminator, try rocking the balancer to see if the key or keyway is worn. If the fit is NOT a nice tight sliding fit, corrective action is required before proceeding with the installation.

Without a mechanical fan the dowel pins are really not required however the new retainer is drilled to engage them. With the dowel pins in the harmonic balancer, slip the new retainer into place and hand tighten the new bolt with lock washer. Torque to 70 to 80lbs with a 15/16″ socket. There are several ways to keep the crank from turning while torquing the center bolt. One of easiest ways to stop the crank from turning is to put the transmission in high gear, let out the clutch and have an assistant press the brake pedal. If you have a properly working emergency brake it may hold if an assistant is unavailable. Another way is to stop the flywheel with a bar against one of the ring gear teeth.

The new retainer can be polished, clear coated, painted, powder coated, anodized, or left unfinished as 6061 aluminum is quite corrosion resistant.

Thanks for purchasing our kit. Check out our TBI injection conversions for British and other cars using SU, Zenith Stromberg, and Hitachi carbs in our online store.

Electric Fan

Don’t forget to install a good electric fan in a puller configuration behind your radiator. The fan should be sized so that it covers the width of your radiator.

NOTE: Keep in mind that clearance between the rear of the radiator and engine cross member is tight so size your fan purchase accordingly.
